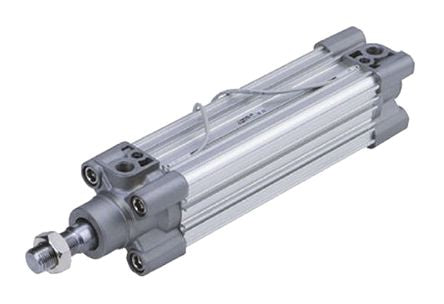

SMC Double Acting Cylinder 63mm Bore, 80mm Stroke, Double Acting [CP96SDB63-80C]; 917-8755
by SMC
0₫
Mã kho: 9178755
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CP96 |
| Action | Double |
| Bore | 63mm |
| Stroke | 80mm |
| ISO Standard | 4414 |
| Maximum Operating Pressure | 1 MPa |
| Cushioning Type | Air |
| Dimensions | 274 x 77 x 77mm |
| Weight | 2.4kg |
| Width | 77mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Length | 274mm |
| Stroke Interval Weight | 0.32 kg @ 50 mm Stroke |
| Height | 77mm |
