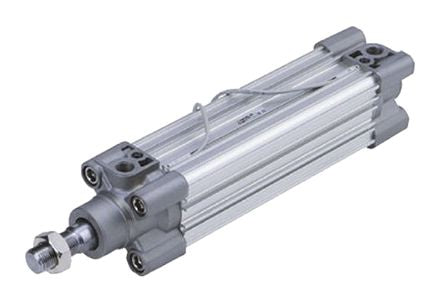

SMC Double Acting Cylinder 63mm Bore, 200mm Stroke, Double Acting [CP96SDB63-200C]; 917-8739
by SMC
0₫
Mã kho: 9178739
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CP96 |
| Action | Double |
| Bore | 63mm |
| Stroke | 200mm |
| ISO Standard | 4414 |
| Maximum Operating Pressure | 1 MPa |
| Cushioning Type | Air |
| Dimensions | 394 x 77 x 77mm |
| Weight | 6kg |
| Minimum Operating Temperature | -20°C |
| Stroke Interval Weight | 0.32 kg @ 50 mm Stroke |
| Length | 394mm |
| Width | 77mm |
| Height | 77mm |
| Maximum Operating Temperature | +70°C |
