![SMC CP96SDB50-200C 9166803](http://nguyenxuong.com/cdn/shop/products/W9166803-01_444x304.jpg?v=1593773885)

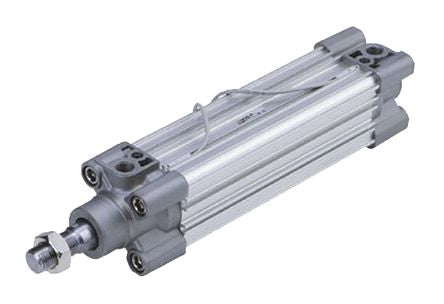

SMC Double Acting Cylinder 50mm Bore, 200mm Stroke, Double Acting [CP96SDB50-200C]; 916-6803
by SMC
0₫
Mã kho: 9166803
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | CP96 |
Action | Double |
Bore | 50mm |
Stroke | 200mm |
ISO Standard | 4414 |
Maximum Operating Pressure | 1 MPa |
Cushioning Type | Air |
Dimensions | 379 x 66 x 66mm |
Weight | 2.7kg |
Minimum Operating Temperature | -20°C |
Height | 66mm |
Stroke Interval Weight | 0.3 kg @ 50 mm Stroke |
Length | 379mm |
Width | 66mm |
Maximum Operating Temperature | +70°C |
