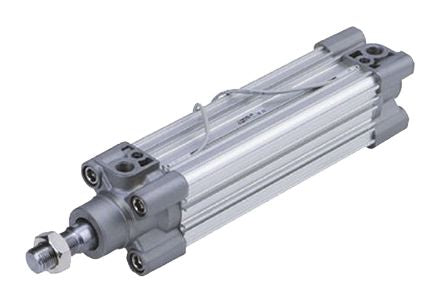

SMC Double Acting Cylinder 100mm Bore, 100mm Stroke, Double Acting [CP96SDB100-100C]; 916-6705
by SMC
0₫
Mã kho: 9166705
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | CP96 |
Action | Double |
Bore | 100mm |
Stroke | 100mm |
ISO Standard | 4414 |
Maximum Operating Pressure | 1 MPa |
Cushioning Type | Air |
Dimensions | 333 x 118 x 118mm |
Weight | 9.8kg |
Width | 118mm |
Length | 333mm |
Minimum Operating Temperature | -20°C |
Stroke Interval Weight | 0.54 kg @ 50 mm Stroke |
Height | 118mm |
Maximum Operating Temperature | +70°C |
