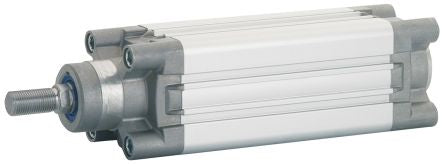

RS PRO Pneumatic Cylinder 63mm Bore, 25mm Stroke, Double Acting; 176-1644
by RS PRO
0₫
Mã kho: 1761644
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Action | Double |
Bore | 63mm |
Stroke | 25mm |
VDMA Standard | 6431 |
ISO Standard | 15552 |
Maximum Operating Pressure | 10 bar |
Cushioning Type | Cushioned |
Dimensions | 183 x 74 x 74mm |
Minimum Operating Temperature | 0°C |
Length | 183mm |
Height | 74mm |
Maximum Operating Temperature | +80°C |
Width | 74mm |
