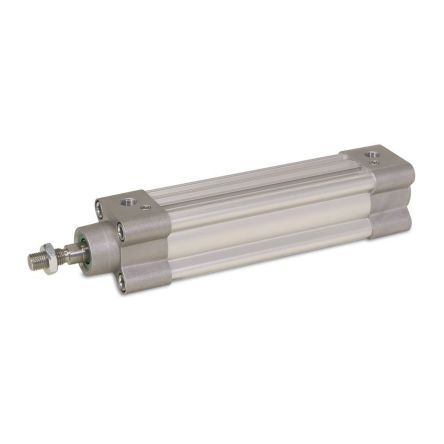

Parker Pneumatic Profile Cylinder 100mm Bore, 25mm Stroke, P1F-S Series, Double Acting [P1F-S100MS-0025-0000]; 180-9697
by Parker
0₫
Mã kho: 1809697
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | P1F-S |
Action | Double |
Bore | 100mm |
Stroke | 25mm |
VDMA Standard | 24562 |
ISO Standard | 6431, 15552 |
Maximum Operating Pressure | 10 bar |
Dimensions | 254 x 111 x 111mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
Stroke Interval Weight | 0.8 kg @ 100 mm |
Height | 111mm |
Width | 111mm |
Test Weight | 3.65 kg @ 0 mm |
Length | 254mm |
