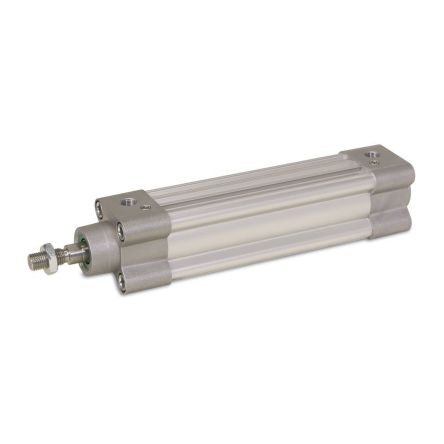

Parker Pneumatic Profile Cylinder 50mm Bore, 80mm Stroke, P1F-S Series, Double Acting [P1F-S050MS-0080-0000]; 180-9690
by Parker
0₫
Mã kho: 1809690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | P1F-S |
Action | Double |
Bore | 50mm |
Stroke | 80mm |
VDMA Standard | 24562 |
ISO Standard | 6431, 15552 |
Maximum Operating Pressure | 10 bar |
Dimensions | 255 x 64.5 x 64.5mm |
Length | 255mm |
Width | 64.5mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
Height | 64.5mm |
Stroke Interval Weight | 0.47 kg @ 100 mm |
Test Weight | 1.22 kg @ 0 mm |
