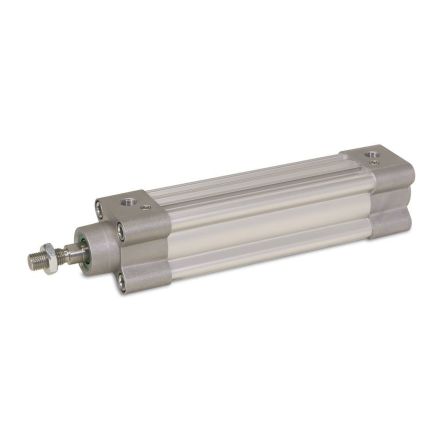

Parker Pneumatic Profile Cylinder 32mm Bore, 125mm Stroke, P1F-S Series, Double Acting [P1F-S032MS-0125-0000]; 180-9686
by Parker
0₫
Mã kho: 1809686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | P1F-S |
| Action | Double |
| Bore | 32mm |
| Stroke | 125mm |
| VDMA Standard | 24562 |
| ISO Standard | 6431, 15552 |
| Maximum Operating Pressure | 10 bar |
| Dimensions | 267 x 47 x 47mm |
| Maximum Operating Temperature | +80°C |
| Width | 47mm |
| Length | 267mm |
| Minimum Operating Temperature | -20°C |
| Height | 47mm |
| Stroke Interval Weight | 0.23 kg @ 100 mm |
| Test Weight | 0.52 kg @ 0 mm |
