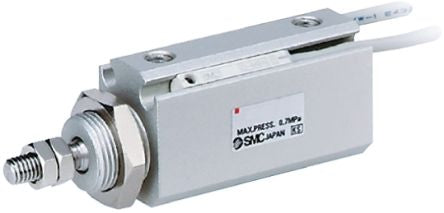

SMC Double Action Pneumatic Pin Cylinder, CDJP2B6-15D [CDJP2B6-15D]; 547-556
by SMC
0₫
Mã kho: 547556
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CJP2 |
| Action | Double |
| Rods | Single |
| Bore | 6mm |
| Stroke | 15mm |
| Piston Speed | 50 → 500mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Rubber |
| Port Connection | M3 x 0.5 |
| Dimensions | 48 x 14 x 16.5mm |
| Weight | 21g |
| Minimum Piston Speed | 50mm/s |
| Height | 16.5mm |
| Length | 48mm |
| Width | 14mm |
| Maximum Operating Temperature | +70°C |
| Maximum Piston Speed | 500mm/s |
| Minimum Operating Temperature | -10°C |
