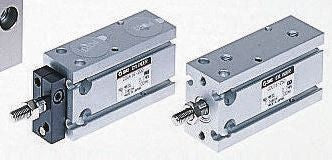

SMC Pneumatic Multi-Mount Cylinder CU Series, Double Action, Single Rod, 16mm Bore, 25mm stroke [CDU16-25D]; 183-4595
by SMC
0₫
Mã kho: 1834595
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | CU |
Action | Double |
Rods | Single |
Bore | 16mm |
Stroke | 25mm |
Maximum Operating Pressure | 0.7 MPa |
Absolute Maximum Pressure | 1.05MPa |
Cushioning Type | Rubber |
Port Connection | M5 x 0.8 |
Dimensions | 71 x 20 x 32mm |
Weight | 74g |
Minimum Operating Temperature | -10°C |
Length | 71mm |
Height | 32mm |
Width | 20mm |
Maximum Operating Temperature | +70°C |
