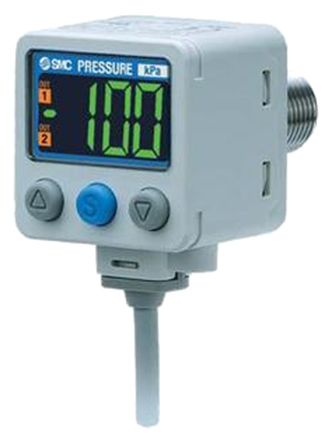

SMC Pressure Switch, R 1/4 -0.1Mpa to +1 MPa [ISE80-02-T]; 873-2679
by SMC
0₫
Mã kho: 8732679
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Operating Pressure | -0.1MPa |
Maximum Operating Pressure | +1 MPa |
Pressure Type | Positive Pressure |
Suitable Media | Non Corrosive Fluid |
Connection | R 1/4 |
Type | Reed, Solid State |
Voltage Rating | 12 → 24V dc |
Connection Thread Size | 1/4 in |
Manufacturer Series | ISE80 |
Connection Thread Standard | R |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
IP Rating | IP65 |
Pressure Setting Range | -0.105 → +1.1MPa |
Output Type | Analogue Output, 2 PNP Open Collector Outputs |
Maximum Pressure Setting | +1.1MPa |
Minimum Pressure Setting | -0.105MPa |
