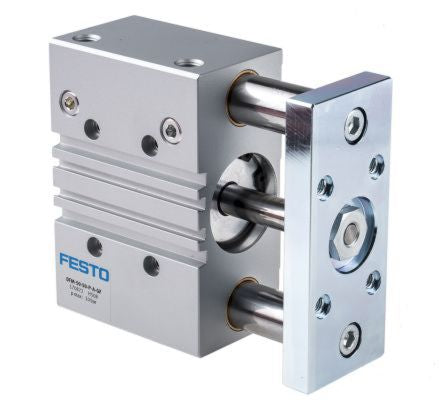

Festo Guide Cylinder 50mm Bore, 125mm Stroke, DFM Series, Double Acting [DFM-50-125-P-A-GF]; 136-6527
by Festo
0₫
Mã kho: 1366527
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DFM |
| Action | Double |
| Bore | 50mm |
| Stroke | 125mm |
| Maximum Operating Pressure | 10 bar |
| Cushioning Type | Elastomer |
| Dimensions | 259 x 148 x 64mm |
| Weight | 6.3kg |
| Maximum Operating Temperature | +80°C |
| Length | 259mm |
| Height | 64mm |
| Width | 148mm |
| Minimum Operating Temperature | -20°C |
