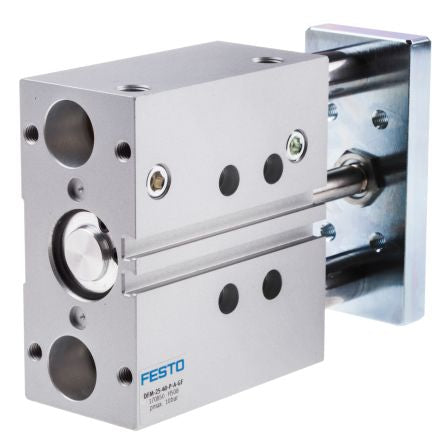

Festo Guide Cylinder 25mm Bore, 40mm Stroke, DFM Series, Double Acting [DFM-25-40-P-A-GF]; 121-5415
by Festo
0₫
Mã kho: 1215415
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DFM |
| Action | Double |
| Bore | 25mm |
| Stroke | 40mm |
| Maximum Operating Pressure | 10 bar |
| Cushioning Type | Elastomer |
| Dimensions | 123 x 95 x 44mm |
| Weight | 1.4kg |
| Maximum Operating Temperature | +80°C |
| Length | 123mm |
| Height | 44mm |
| Minimum Operating Temperature | -20°C |
| Width | 95mm |
