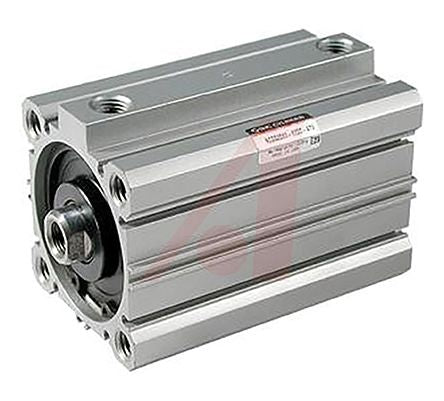

SMC Pneumatic Compact Cylinder 12mm Bore, 10mm Stroke, NCQ2 Series, Double Acting [NCQ2B12-10S]; 849-7446
by SMC
0₫
Mã kho: 8497446
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 10mm |
Bore | 12mm |
Action | Double |
Manufacturer Series | NCQ2 |
Dimensions | 30.5 x 25 x 25mm |
Length | 30.5mm |
Width | 25mm |
Height | 25mm |
Maximum Operating Pressure | 145 psi |
Weight | 46.7g |
Minimum Operating Temperature | -10°C |
Stroke Interval Weight | 0.104 lbs |
Maximum Operating Temperature | +70°C |
