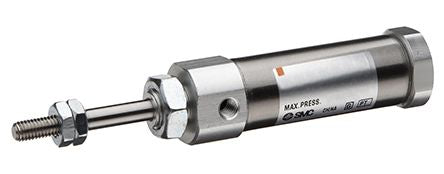

SMC Double Action Pneumatic Pin Cylinder, NCDJ2D10-100-B [NCDJ2D10-100-B]; 844-4486
by SMC
0₫
Mã kho: 8444486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | NCJ2 |
| Action | Double |
| Rods | Single |
| Bore | 9.53mm |
| Stroke | 25.4mm |
| Piston Speed | 50 → 750mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1MPa |
| Cushioning Type | Rubber |
| Port Connection | 10-32 UNF |
| Dimensions | 3.91 x 0.47 x 0.47in |
| Weight | 50.6g |
| Minimum Piston Speed | 50mm/s |
| Maximum Piston Speed | 750mm/s |
| Height | 11.94mm |
| Width | 11.94mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Length | 99.31mm |
