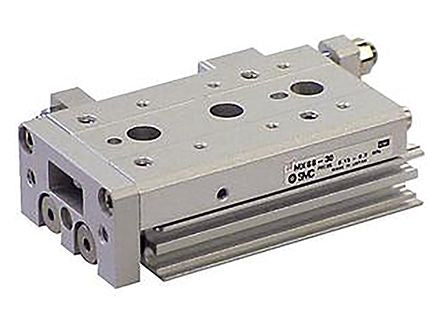

SMC Slide Unit Actuator Double Action, 16mm Bore, 50mm stroke [MXS16-50AS]; 843-0594
by SMC
0₫
Mã kho: 8430594
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | MXS |
| Action | Double |
| Bore | 16mm |
| Stroke | 50mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Cushioning Type | Rubber Bumper |
| Port Connection | M5 x 0.8 |
| Dimensions | 112 x 62 x 40mm |
| Weight | 760g |
| Height | 40mm |
| Length | 112mm |
| Width | 62mm |
| Series | MXS |
