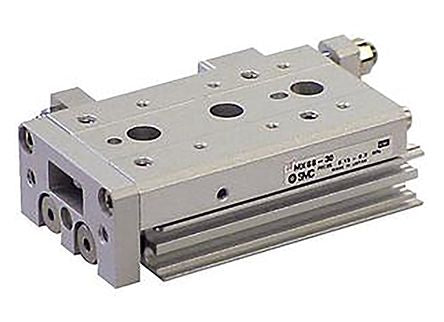

SMC Slide Unit Actuator Double Action, 12mm Bore, 40mm stroke [MXS12-40A]; 843-0569
by SMC
0₫
Mã kho: 8430569
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | MXS |
| Action | Double |
| Bore | 12mm |
| Stroke | 40mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Cushioning Type | Rubber Bumper |
| Port Connection | M5 x 0.8 |
| Dimensions | 92 x 50 x 32mm |
| Weight | 385g |
| Height | 32mm |
| Length | 92mm |
| Width | 50mm |
| Series | MXS |
