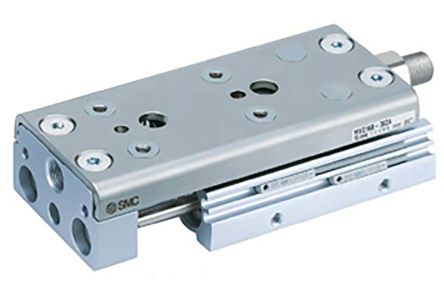

SMC Slide Unit Actuator Double Action, 6mm Bore, 50mm stroke [MXQ6B-50Z]; 124-4616
by SMC
0₫
Mã kho: 1244616
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Bore | 6mm |
| Stroke | 50mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Force at 7 bar | 29 (In) N, 40 (Out) N |
| Cushioning Type | Rubber |
| Port Connection | M5 x 0.8 |
| Dimensions | 131.5 x 34 x 20mm |
| Weight | 230g |
| Height | 20mm |
| Length | 131.5mm |
| Width | 34mm |
| Size Type | Standard |
| Series | MXQB |
