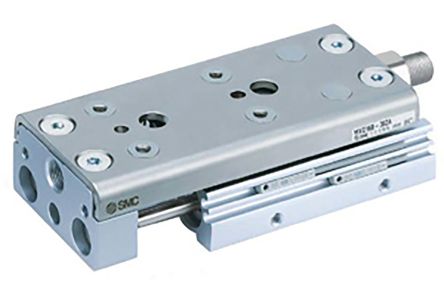

SMC Slide Unit Actuator Double Action, 6mm Bore, 30mm stroke [MXQ6A-30Z]; 124-4613
by SMC
0₫
Mã kho: 1244613
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Bore | 6mm |
| Stroke | 30mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Force at 7 bar | 29 (In) N, 40 (Out) N |
| Cushioning Type | Rubber |
| Port Connection | M5 x 0.8 |
| Dimensions | 95.5 x 37 x 23mm |
| Weight | 170g |
| Height | 23mm |
| Length | 95.5mm |
| Width | 37mm |
| Size Type | Standard |
| Series | MXQA |
