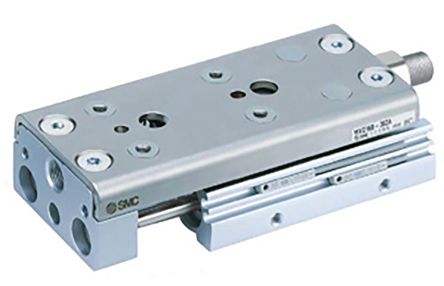

SMC Slide Unit Actuator Double Action, 25mm Bore, 20mm stroke [MXQ25A-20Z]; 124-4608
by SMC
0₫
Mã kho: 1244608
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Bore | 25mm |
| Stroke | 20mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Force at 7 bar | 577 (In) N, 687 (Out) N |
| Cushioning Type | Rubber |
| Port Connection | M5 x 0.8 |
| Dimensions | 141.5 x 91 x 52mm |
| Weight | 1.4kg |
| Height | 52mm |
| Length | 141.5mm |
| Width | 91mm |
| Size Type | Standard |
| Series | MXQA |
