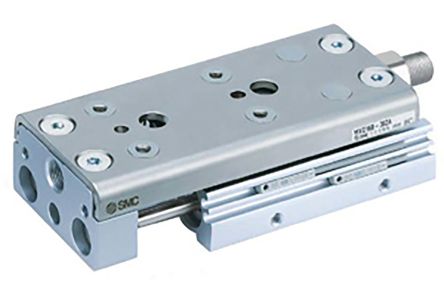

SMC Slide Unit Actuator Double Action, 16mm Bore, 75mm stroke [MXQ16A-75Z]; 124-4586
by SMC
0₫
Mã kho: 1244586
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Action | Double |
Bore | 16mm |
Stroke | 75mm |
Maximum Operating Pressure | 0.7 MPa |
Absolute Maximum Pressure | 1.05MPa |
Force at 7 bar | 242 (In) N, 281 (Out) N |
Cushioning Type | Rubber |
Port Connection | M5 x 0.8 |
Dimensions | 176.5 x 65 x 35mm |
Weight | 810g |
Height | 35mm |
Length | 176.5mm |
Width | 65mm |
Series | MXQA |
Size Type | Standard |
