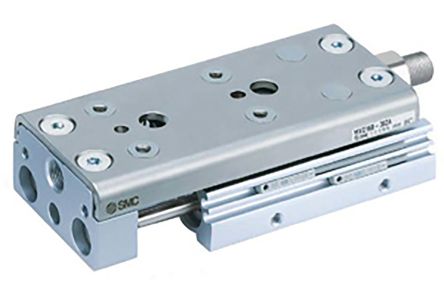

SMC Slide Unit Actuator Double Action, 16mm Bore, 50mm stroke [MXQ16A-50Z]; 124-4564
by SMC
0₫
Mã kho: 1244564
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Bore | 16mm |
| Stroke | 50mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Force at 7 bar | 242 (In) N, 281 (Out) N |
| Cushioning Type | Rubber |
| Port Connection | M5 x 0.8 |
| Dimensions | 145.5 x 65 x 35mm |
| Weight | 670g |
| Height | 35mm |
| Length | 145.5mm |
| Width | 65mm |
| Series | MXQA |
| Size Type | Standard |
