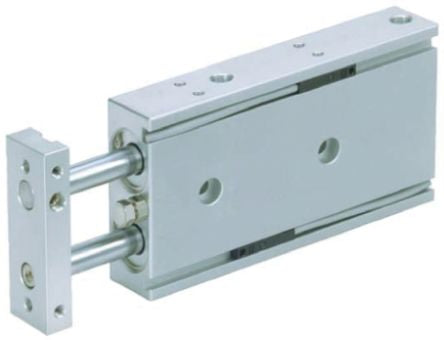

SMC Pneumatic Guided Cylinder 20mm Bore, 90mm Stroke, CXS Series, [CXSM20-90]; 712-0836
by SMC
0₫
Mã kho: 7120836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CXS |
| Bore | 20mm |
| Stroke | 90mm |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Rubber |
| Dimensions | 184 x 64 x 25mm |
| Weight | 700g |
| Maximum Operating Temperature | +60°C |
| Length | 184mm |
| Minimum Operating Temperature | -10°C |
| Height | 25mm |
| Width | 64mm |
