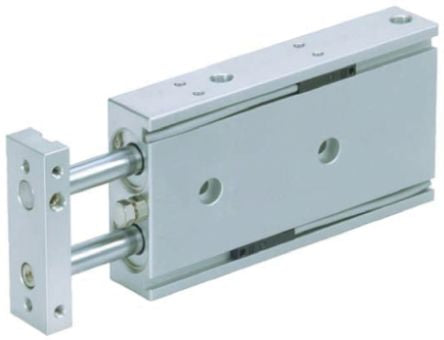

SMC Pneumatic Guided Cylinder 20mm Bore, 75mm Stroke, CXS Series, [CXSM20-75]; 712-0823
by SMC
0₫
Mã kho: 7120823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CXS |
| Bore | 20mm |
| Stroke | 75mm |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Rubber |
| Dimensions | 169 x 64 x 25mm |
| Weight | 640g |
| Maximum Operating Temperature | +60°C |
| Length | 169mm |
| Height | 25mm |
| Minimum Operating Temperature | -10°C |
| Width | 64mm |
