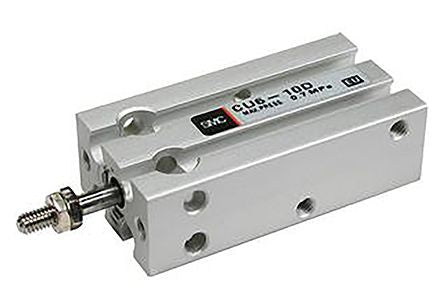

SMC Pneumatic Multi-Mount Cylinder CU Series, Double Action, Single Rod, 16mm Bore, 5mm stroke [CU16-5D]; 838-9229
by SMC
0₫
Mã kho: 8389229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CU |
| Action | Double |
| Rods | Single |
| Bore | 16mm |
| Stroke | 5mm |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Cushioning Type | Rubber Bumper |
| Port Connection | M5 x 0.8 |
| Dimensions | 51 x 20 x 32mm |
| Weight | 59g |
| Minimum Operating Temperature | -10°C |
| Length | 51mm |
| Width | 20mm |
| Maximum Operating Temperature | +70°C |
| Height | 32mm |
