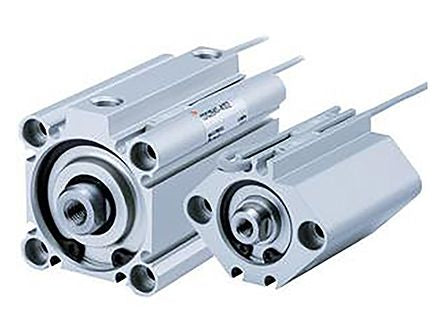

SMC Pneumatic Guided Cylinder 12mm Bore, 10mm Stroke, CQ2 Series, Double Acting [CQ2B12-10D]; 838-8923
by SMC
0₫
Mã kho: 8388923
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CQ2 |
| Action | Double |
| Bore | 12mm |
| Stroke | 10mm |
| Maximum Operating Pressure | 1 MPa |
| Dimensions | 27 x 25 x 25mm |
| Weight | 35g |
| Maximum Operating Temperature | +70°C |
| Length | 27mm |
| Width | 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -10°C |
