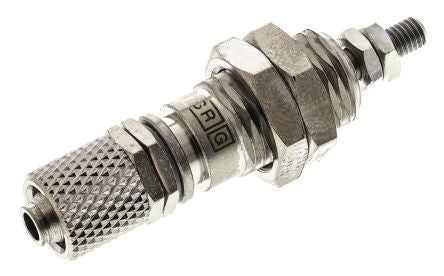

SMC Single Action Pneumatic Pin Cylinder, CJPB6-5H6 [CJPB6-5H6]; 183-3946
by SMC
0₫
Mã kho: 1833946
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CJP |
| Action | Single |
| Rods | Single |
| Bore | 6mm |
| Stroke | 5mm |
| Piston Speed | 50 → 500mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Not Cushioned |
| Port Connection | M5 x 0.8 |
| Dimensions | 27.5 x 12 x 13.9mm |
| Weight | 10.6g |
| Minimum Piston Speed | 50mm/s |
| Length | 27.5mm |
| Height | 13.9mm |
| Maximum Piston Speed | 500mm/s |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Width | 12mm |
