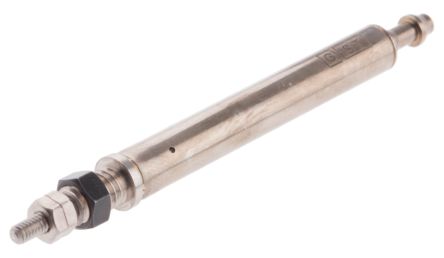

SMC Single Action Pneumatic Pin Cylinder, CJ1B4-15SU4 [CJ1B4-15SU4]; 264-6153
by SMC
0₫
Mã kho: 2646153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CJ1 |
| Action | Single |
| Rods | Single |
| Bore | 4mm |
| Stroke | 15mm |
| Piston Speed | 50 → 500mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Not Cushioned |
| Port Connection | U4 |
| Dimensions | 5 (Dia.) x 58mm |
| Weight | 5.6g |
| Minimum Piston Speed | 50mm/s |
| Length | 58mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -10°C |
| Maximum Piston Speed | 500mm/s |
| Diameter | 5mm |
