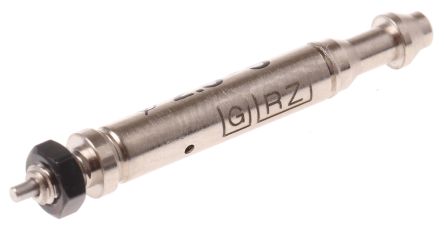

SMC Single Action Pneumatic Pin Cylinder, CJ1B2-5SU4 [CJ1B2-5SU4]; 264-6103
by SMC
0₫
Mã kho: 2646103
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CJ1 |
| Action | Single |
| Rods | Single |
| Bore | 2.5mm |
| Stroke | 5mm |
| Piston Speed | 50 → 500mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Cushioning Type | Not Cushioned |
| Port Connection | U4 |
| Dimensions | 3.5 (Dia.) x 29mm |
| Weight | 12g |
| Minimum Piston Speed | 50mm/s |
| Length | 29mm |
| Minimum Operating Temperature | -10°C |
| Diameter | 3.5mm |
| Maximum Operating Temperature | +70°C |
| Maximum Piston Speed | 500mm/s |
