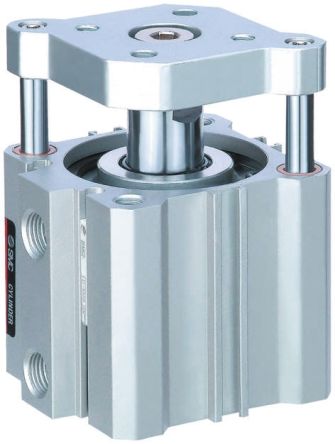

SMC Pneumatic Guided Cylinder 50mm Bore, 75mm Stroke, CQM Series, Double Acting [CDQMB50-75]; 160-638
by SMC
0₫
Mã kho: 160638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | CQM |
Action | Double |
Bore | 50mm |
Stroke | 75mm |
Maximum Operating Pressure | 1 MPa |
Cushioning Type | Rubber |
Dimensions | 135.5 x 80 x 64mm |
Weight | 1.1kg |
Maximum Operating Temperature | +70°C |
Length | 135.5mm |
Minimum Operating Temperature | -10°C |
Height | 64mm |
Width | 80mm |
