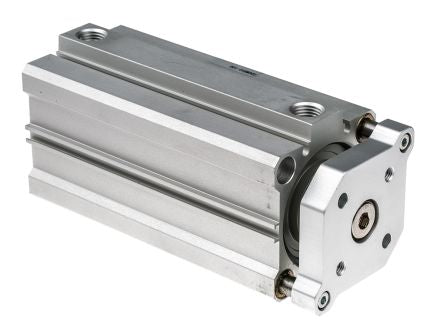

SMC Pneumatic Guided Cylinder 50mm Bore, 100mm Stroke, CQM Series, Double Acting [CDQMB50-100]; 160-666
by SMC
0₫
Mã kho: 160666
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | CQM |
| Action | Double |
| Bore | 50mm |
| Stroke | 100mm |
| Maximum Operating Pressure | 1 MPa |
| Cushioning Type | Rubber |
| Dimensions | 160.5 x 80 x 64mm |
| Weight | 1.3kg |
| Maximum Operating Temperature | +70°C |
| Length | 160.5mm |
| Minimum Operating Temperature | -10°C |
| Width | 80mm |
| Height | 64mm |
