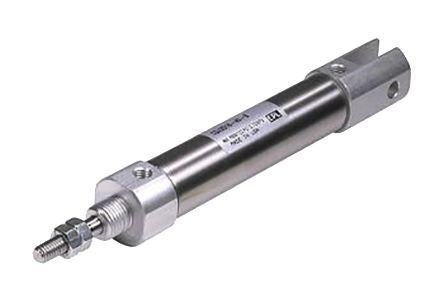

SMC Double Action Pneumatic Pin Cylinder, CDJ2B16-15Z-B [CDJ2B16-15Z-B]; 890-3250
by SMC
0₫
Mã kho: 8903250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Rods | Single |
| Bore | 16mm |
| Stroke | 15mm |
| Piston Speed | 50 → 750mm/s |
| Maximum Operating Pressure | 0.7 MPa |
| Absolute Maximum Pressure | 1.05MPa |
| Cushioning Type | Rubber |
| Port Connection | M5 x 0.8 |
| Dimensions | 90 x 18 x 18mm |
| Weight | 55g |
| Minimum Piston Speed | 50mm/s |
| Maximum Operating Temperature | 60°C |
| Width | 18mm |
| Length | 90mm |
| Height | 18mm |
| Maximum Piston Speed | 750mm/s |
| Minimum Operating Temperature | -10°C |
