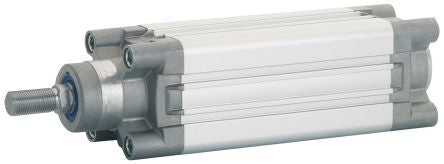

RS PRO Pneumatic Cylinder 50mm Bore, 125mm Stroke, Double Acting; 176-1648
by RS PRO
0₫
Mã kho: 1761648
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Action | Double |
| Bore | 50mm |
| Stroke | 125mm |
| VDMA Standard | 6431 |
| ISO Standard | 15552 |
| Maximum Operating Pressure | 10 bar |
| Cushioning Type | Cushioned |
| Dimensions | 268 x 64 x 64mm |
| Maximum Operating Temperature | +80°C |
| Height | 64mm |
| Width | 64mm |
| Length | 268mm |
| Minimum Operating Temperature | 0°C |
