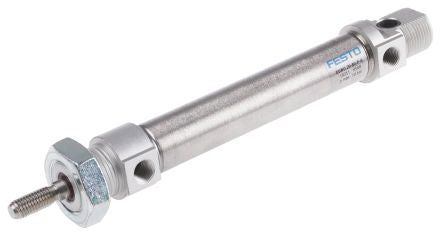

Festo Pneumatic Cylinder 20mm Bore, 70mm Stroke, DSNU Series, Double Acting [DSNU-20-70-P-A]; 136-6630
by Festo
0₫
Mã kho: 1366630
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DSNU |
| Action | Double |
| Bore | 20mm |
| Stroke | 70mm |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/8 |
| Piston Rod Thread Gender | Male |
| Cushioning Type | Elastomer |
| Dimensions | 27 x 202mm |
| Weight | 237.2g |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Length | 202mm |
| Diameter | 27mm |
