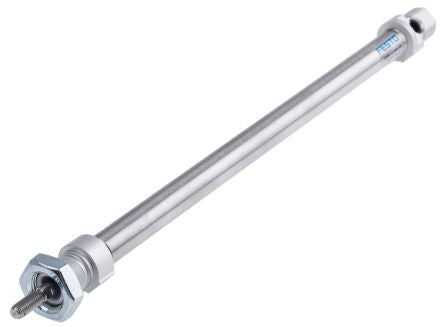

Festo Pneumatic Cylinder 12mm Bore, 200mm Stroke, DSNU Series, Double Acting [DSNU-12-200-P-A]; 121-4699
by Festo
0₫
Mã kho: 1214699
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DSNU |
| Action | Double |
| Bore | 12mm |
| Stroke | 200mm |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | M5 |
| Piston Rod Thread Gender | Male |
| Cushioning Type | Elastomer |
| Dimensions | 20 x 305mm |
| Weight | 155g |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Diameter | 20mm |
| Length | 305mm |
