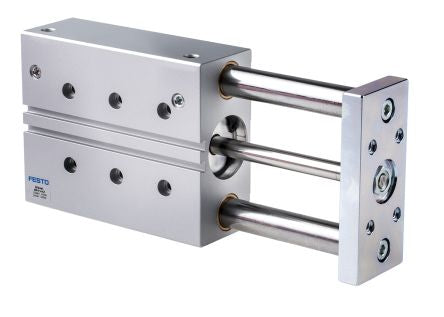

Festo Guide Cylinder 40mm Bore, 100mm Stroke, DFM Series, Double Acting [DFM-40-100-P-A-GF]; 121-5440
by Festo
0₫
Mã kho: 1215440
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | DFM |
| Action | Double |
| Bore | 40mm |
| Stroke | 100mm |
| Maximum Operating Pressure | 10 bar |
| Cushioning Type | Elastomer |
| Dimensions | 199 x 120 x 54mm |
| Weight | 3.5kg |
| Maximum Operating Temperature | +80°C |
| Length | 199mm |
| Minimum Operating Temperature | -20°C |
| Height | 54mm |
| Width | 120mm |
