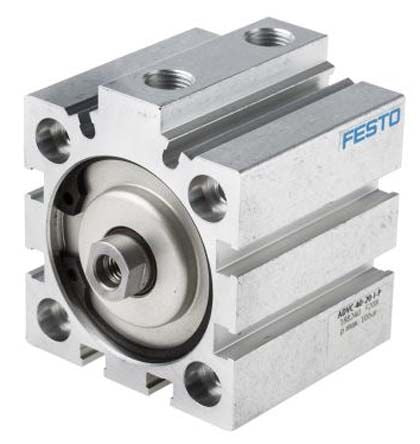

Festo Pneumatic Cylinder 40mm Bore, 15mm Stroke, ADVC Series, Double Acting [ADVC-40-15-I-P-A]; 136-6599
by Festo
0₫
Mã kho: 1366599
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 15mm |
| Bore | 40mm |
| Action | Double |
| Manufacturer Series | ADVC |
| Pneumatic Connection | G 1/8 |
| Piston Rod Thread Gender | Female |
| Dimensions | 53.5 x 53.5 x 50.5mm |
| Length | 50.5mm |
| Width | 53.5mm |
| Height | 53.5mm |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
