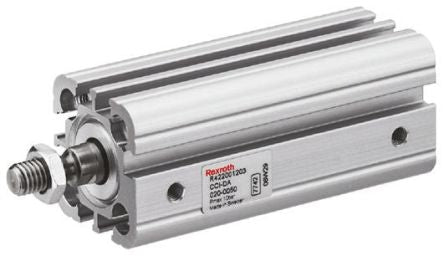

Aventics Pneumatic Compact Cylinder 80mm Bore, 40mm Stroke, CCI Series, Double Acting [R422001199]; 703-5741
by Aventics
0₫
Mã kho: 7035741
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 40mm |
| Bore | 80mm |
| Action | Double |
| Manufacturer Series | CCI |
| Cushioning Type | Rubber |
| Dimensions | 104.4 x 96 x 96mm |
| Length | 104.4mm |
| Width | 96mm |
| Height | 96mm |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Temperature | -20°C |
| Weight | 1.7kg |
| Maximum Operating Temperature | +80°C |
