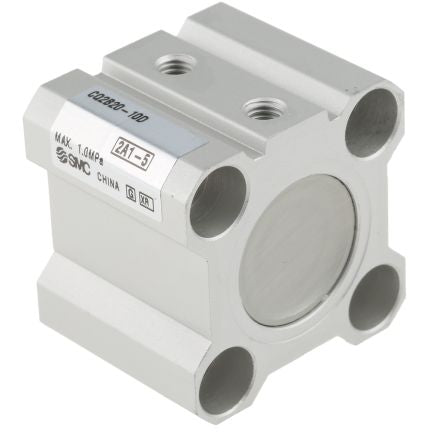

SMC Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke, CQ2 Series, Double Acting [CQ2B20-10D]; 686-2548
by SMC
0₫
Mã kho: 6862548
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 10mm |
| Bore | 20mm |
| Action | Double |
| Manufacturer Series | CQ2 |
| Dimensions | 34 x 36 x 36mm |
| Length | 34mm |
| Width | 36mm |
| Height | 36mm |
| Maximum Operating Pressure | 1 MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Weight | 75g |
