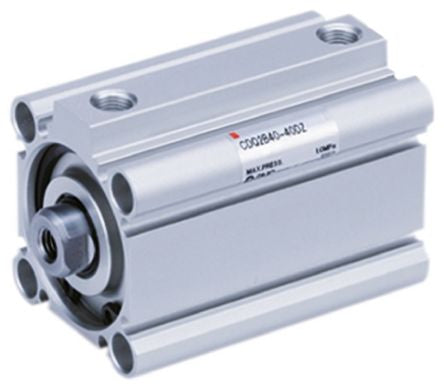

SMC Pneumatic Compact Cylinder 32mm Bore, 25mm Stroke, CQ2 Series, Double Acting [CDQ2B32TF-25DZ]; 721-3632
by SMC
0₫
Mã kho: 7213632
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 25mm |
| Bore | 32mm |
| Action | Double |
| Manufacturer Series | CQ2 |
| Dimensions | 55 x 49.5 x 45mm |
| Length | 55mm |
| Width | 49.5mm |
| Maximum Operating Pressure | 1 MPa |
| Height | 45mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +70°C |
| Weight | 214g |
