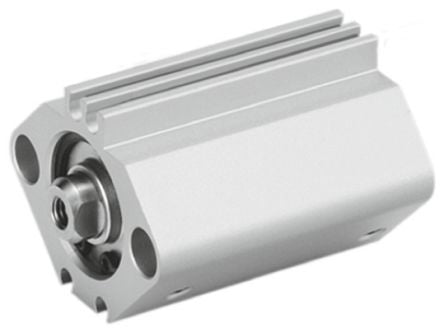

SMC Pneumatic Compact Cylinder 12mm Bore, 20mm Stroke, CQ2 Series, Double Acting [CDQ2B12-20DCZ]; 721-3587
by SMC
0₫
Mã kho: 7213587
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 20mm |
Bore | 12mm |
Action | Double |
Manufacturer Series | CQ2 |
Cushioning Type | Rubber |
Dimensions | 40.5 x 25 x 25mm |
Length | 40.5mm |
Width | 25mm |
Maximum Operating Pressure | 1 MPa |
Height | 25mm |
Weight | 47g |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +70°C |
