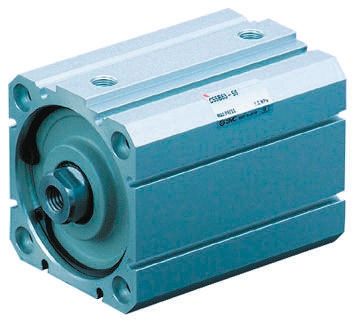

SMC Pneumatic Compact Cylinder 50mm Bore, 40mm Stroke, C55 Series, Double Acting [CD55B50-40]; 164-573
by SMC
0₫
Mã kho: 164573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Stroke | 40mm |
| Bore | 50mm |
| Action | Double |
| Manufacturer Series | C55 |
| Cushioning Type | Rubber |
| Dimensions | 93 x 64 x 64mm |
| Length | 93mm |
| Width | 64mm |
| Height | 64mm |
| Maximum Operating Pressure | 1 MPa |
| Maximum Operating Temperature | +70°C |
| Weight | 755g |
| Minimum Operating Temperature | -10°C |
