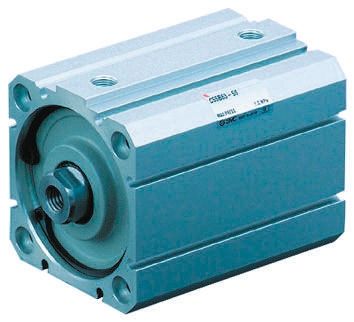

SMC Pneumatic Compact Cylinder 40mm Bore, 50mm Stroke, C55 Series, Double Acting [CD55B40-50]; 164-860
by SMC
0₫
Mã kho: 164860
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 50mm |
Bore | 40mm |
Action | Double |
Manufacturer Series | C55 |
Cushioning Type | Rubber |
Dimensions | 102 x 52 x 52mm |
Length | 102mm |
Width | 52mm |
Maximum Operating Pressure | 1 MPa |
Height | 52mm |
Weight | 533g |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -10°C |
