![SMC CD55B40-40 164905](http://nguyenxuong.com/cdn/shop/products/R0165122-01_a9569ca9-d6df-4d79-bd3d-b387b7b1ef94_354x322.jpg?v=1594274781)

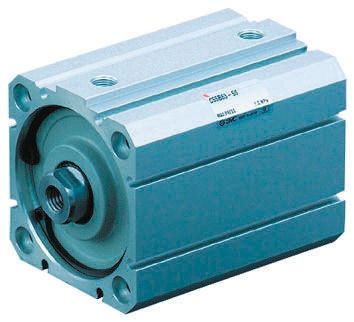

SMC Pneumatic Compact Cylinder 40mm Bore, 40mm Stroke, C55 Series, Double Acting [CD55B40-40]; 164-905
by SMC
0₫
Mã kho: 164905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 40mm |
Bore | 40mm |
Action | Double |
Manufacturer Series | C55 |
Cushioning Type | Rubber |
Dimensions | 92 x 52 x 52mm |
Length | 92mm |
Width | 52mm |
Maximum Operating Pressure | 1 MPa |
Height | 52mm |
Weight | 485g |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +70°C |
