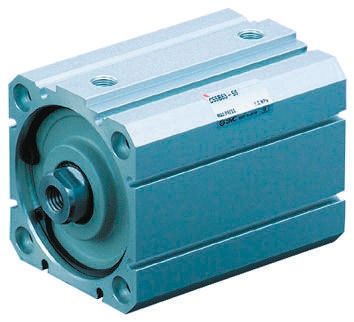

SMC Pneumatic Compact Cylinder 32mm Bore, 80mm Stroke, C55 Series, Double Acting [CD55B32-80M]; 165-037
by SMC
0₫
Mã kho: 165037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 80mm |
Bore | 32mm |
Action | Double |
Manufacturer Series | C55 |
Cushioning Type | Rubber |
Dimensions | 131 x 46 x 46mm |
Length | 131mm |
Width | 46mm |
Maximum Operating Pressure | 1 MPa |
Height | 46mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +70°C |
Weight | 584g |
