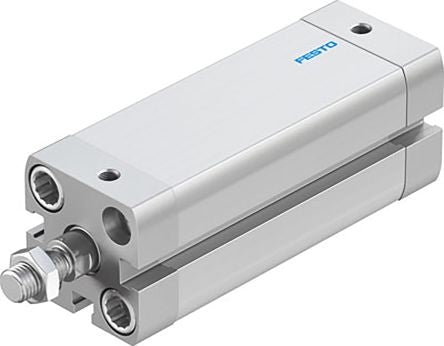

Festo Pneumatic Cylinder 40mm Bore, 5mm Stroke, ADN Series, Double Acting [ADN-40-5-A-P-A]; 136-6798
by Festo
0₫
Mã kho: 1366798
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 5mm |
Bore | 40mm |
Action | Double |
Manufacturer Series | ADN |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Dimensions | 54.5 x 54.5 x 56.1mm |
Length | 56.1mm |
Width | 54.5mm |
Height | 54.5mm |
Maximum Operating Pressure | 10 bar |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
