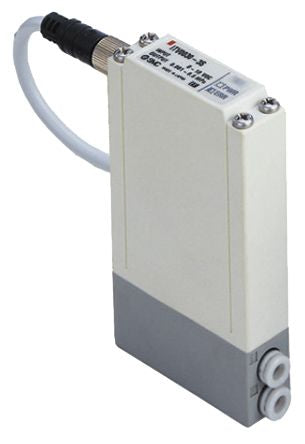

SMC Pneumatic Regulator 6L/min, 0.001 → 0.5Mpa [ITV0030-0BS]; 873-4739
by SMC
0₫
Mã kho: 8734739
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Outlet Pressure | 0.001MPa |
| Maximum Outlet Pressure | 0.5MPa |
| Maximum Input Pressure | 1MPa |
| Maximum Flow Rate | 6L/min |
| Integral Check Valve | Yes |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Overall Length | 56mm |
| Overall Width | 15mm |
| Overall Dimensions | 56 x 15 x 86 (For Single Unit) mm, 56 x 15 x 89 (For Manifold) mm |
| Overall Height | 86 (For Single Unit) mm, 89 (For Manifold) mm |
