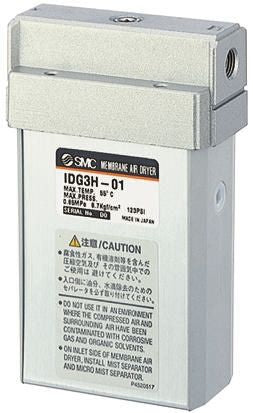

SMC Membrane G 1/4 Pneumatic Air Dryer +55°C -5°C, 0.85Mpa [IDG20-F02]; 667-9315
by SMC
0₫
Mã kho: 6679315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | IDG |
| Type | Membrane |
| Inlet Port Size | G 1/4 |
| Outlet Port Size | G 1/4 |
| Dew Point | -20°C |
| Typical Flow Rate | 50 (Purge) L/min, 200 (Outlet) L/min |
| Maximum Ambient Operating Temperature | +55°C |
| Minimum Ambient Operating Temperature | -5°C |
| Minimum Process Operating Temperature | -5°C |
| Maximum Operating Inlet Pressure | 0.85MPa |
| Ambient Operating Temperature Range | -5 → +55°C |
| Process Operating Temperature Range | -5 → +55°C |
| Minimum Operating Inlet Pressure | 0.3MPa |
| Inlet Port Thread Standard | G |
| Maximum Process Operating Temperature | +55°C |
