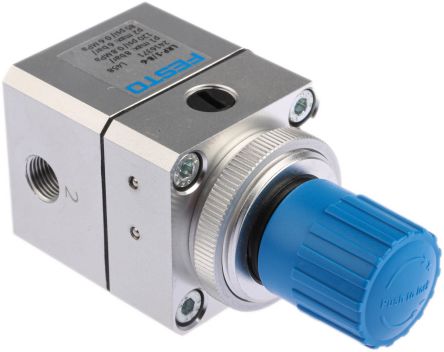

Festo Pneumatic Regulator 300L/min G 1/8, 0.1 → 6bar [LRP-1/8-6]; 126-3110
by Festo
0₫
Mã kho: 1263110
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Port Connection | G 1/8 |
| Minimum Outlet Pressure | 0.1bar |
| Maximum Outlet Pressure | 6bar |
| Maximum Input Pressure | 8bar |
| Pressure Gauge Port Size | G 1/8 |
| Port Connection Thread Size | 1/8 in |
| Pressure Gauge Port Thread Size | 1/8 in |
| Maximum Flow Rate | 300L/min |
| Typical Flow Rate | 300L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Overall Height | 92mm |
| Overall Length | 40mm |
| Overall Width | 40mm |
| Pressure Gauge Port Thread Standard | G |
| Overall Dimensions | 40 x 40 x 92mm |
