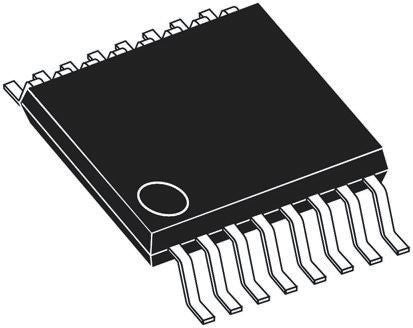

Analog Devices ADF4111BRUZ, Frequency Synthesizer, 16-Pin CP 20 [ADF4111BRUZ]; 709-5131
0₫
Mã kho: 7095131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Elements per Chip | 1 |
| Maximum Supply Current | 5.5 mA |
| Maximum Input Frequency | 1400MHz |
| Mounting Type | Surface Mount |
| Package Type | CP 20 |
| Pin Count | 16 |
| Dimensions | 5 x 4.4 x 1.05mm |
| Length | 5mm |
| Width | 4.4mm |
| Height | 1.05mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
